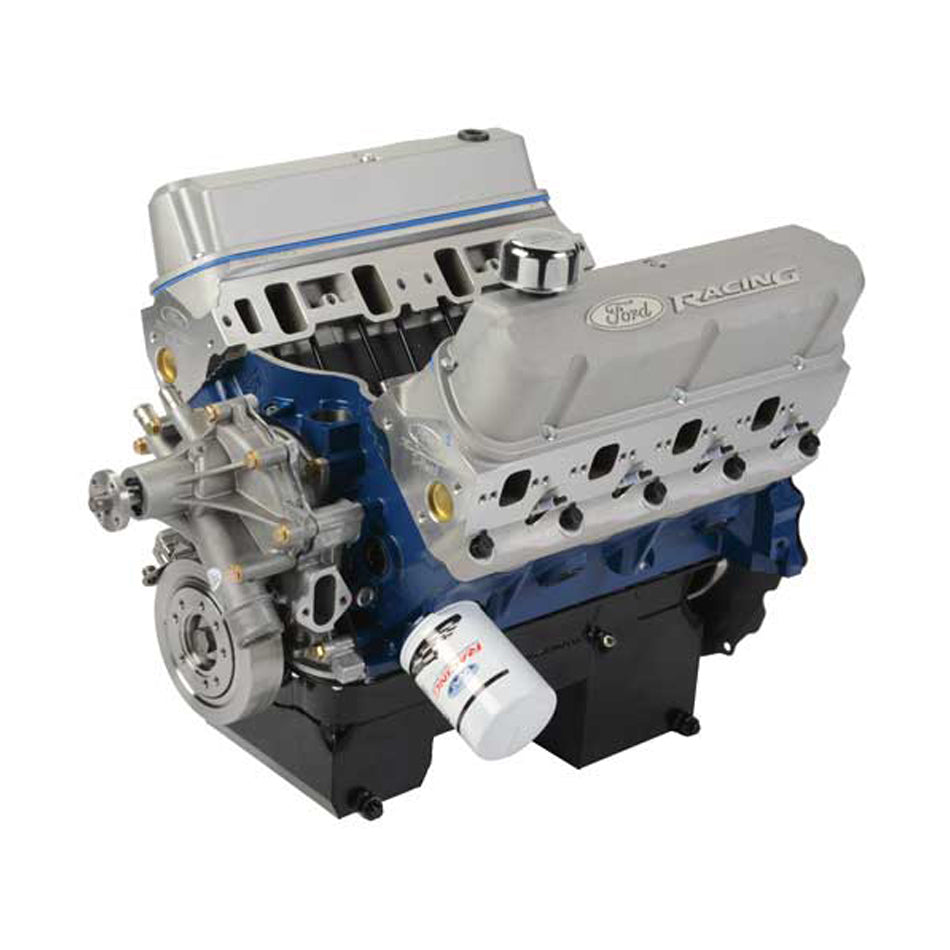

460 BBF Crate Engine W/Rear Sump
Crate Engine - Base Engine - 460 Cubic Inch - 575 HP - Big Block Ford
Engine type: 351 based small block Ford
Displacement (cu in): 460
Bore x stroke (in): 4.150" bore x 4.250" stroke
Block: Boss 351 9.5" deck
Crankshaft: SCAT® Forged Steel
Connecting Rods: SCAT® forged steel H-beam 6.125-inch length connecting rods
Pistons: Forged Mahle® w/ floating wrist pin
Camshaft type: Hydraulic Roller
Camshaft lift (in): .594"/.618"
Camshaft Duration (@.050 in): 242°/248°
Cylinder Heads: Ford Performance M-6049-Z304DA Aluminum "Z" Cylinder Heads
Valve size (in): 2.02 intake 1.60 exhaust
Compression ratio: 10.0:1 (nominal)
Rocker arm ratio: 1.65:1
Vibration Damper: Ford Performance M-6316-D302 SFI Approved
Valve Covers: Ford Performance 302-137 cast aluminum gray crinkle
Oil Pan: Rear sump (7quart) pan with louvered windage tray and crankshaft scraper M-6675-DRS351
Water pump: Ford Performance M-8501-G351 included - long type - standard rotation
Distributor: not included. Steel distributor gear required.
Required fuel: Premium Unleaded
Ignition timing: 32° at 4,000 RPM
Maximum recommended rpm: 5,600 RPM
Balanced: Internal use neutral balance flywheel
Recommended intake: Edelbrock PN 2924 Super Victor (not included)
New block, oil and water pump, performance oil pan and high-performance harmonic balancer
Engine power ratings achieved with Edelbrock® Super Victor intake, Holley® 850 CFM carburetor, long tube headers.
INSTALLATION NOTES: Some or all of the following items may need to be changed from your original engine or modified for proper installation:
Depending on your application, a different timing cover, water pump, performance oil pan and pickup may be required.
Engine has a performance rear sump oil pan and pickup, standard rotation timing cover, standard rotation water pump and non-EFI valve covers.
Timing cover will work with most standard rotation water pumps
Fuel pump eccentric M-6287-B302 installed, allows use of mechanical fuel pump
Valve covers should fit most non-EFI applications. Optional valve covers sold separately.
The damper M-6316-D302 may require a spacer for pulley alignment.
Flywheel not included, use proper neutral balance flywheel
Intake manifold not included
Includes intake gaskets and pilot bearing
Firing order 1-3-7-2-6-5-4-8 (5.0L HO and 351W firing order)
Steel distributor gear required
Exhaust port raised 5/8” may require custom headers
Shipping weight approximately 570 lbs
Built with current available parts. Photo and specs may vary.
